BEN
BEN is the universal luminaire for wall, ceiling, suspension or recessed installation with bodies made entirely of aluminum, without welding. The IP 40 version offers both satin and microprismatic diffusers with DPL UGR<19 technology. The mid-power LED on circular boards avoid the creation of shadow areas and are connected to the internal supports via quick connectors, for easy electrification.
Technical features
Optics
Body
Legal references
Certifications
On request
- Built-in driver
- 3000K/4000K
- >125 lm/W
- CRI >90
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B20 >80.000h
- IP 40
- Direct emission
- Direct/indirect emission
- Impact resistant satin acrylic PG diffuser with UGR<22
- Impact resistant DPL diffuser with homogeneous and controlled emission UGR<19 (accessory)
Aluminum with epoxy powder coating.
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
- CE Conformity
- RETILAP Conformity
- ETL Conformity
- Energy efficiency C
- 5 years warranty
- DALI – code D
- Bluetooth – code BT*
- Emergency 1 hr – code EM*
- Emergency 3 hrs – code EM3H*
- 2700K – code K27*
- Human Centric Lighting*
* Where available
Technical features
- Built-in driver
- 3000K/4000K
- >125 lm/W
- CRI >90
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B20 >80.000h
- IP 40
Optics
- Direct emission
- Direct/indirect emission
- Impact resistant satin acrylic PG diffuser with UGR<22
- Impact resistant DPL diffuser with homogeneous and controlled emission UGR<19 (accessory)
Body
Aluminum with epoxy powder coating.
Legal references
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
Certifications
- CE Conformity
- RETILAP Conformity
- ETL Conformity
- Energy efficiency C
- 5 years warranty
On request
- DALI – code D
- Bluetooth – code BT*
- Emergency 1 hr – code EM*
- Emergency 3 hrs – code EM3H*
- 2700K – code K27*
- Human Centric Lighting*
* Where available
BEN SMALL IP40 PG
BEN
TECHNICAL DRAWING
Optics
PG diffuser with frosted Acryl-Satiné and impact resistant diffuser UGR<22.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
10PG6K4
6W 4000K
798lm
Ø 257mm
Standard
Dimmable
Emergency
10PG12K4
12W 4000K
1598lm
Ø 257mm
Standard
Dimmable
Emergency
10PG18K4
18W 4000K
2394lm
Ø 257mm
Standard
Dimmable
Emergency
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
10PG6K3
6W 3000K
742lm
Ø 257mm
Standard
Dimmable
Emergency
10PG12K3
12W 3000K
1486lm
Ø 257mm
Standard
Dimmable
Emergency
10PG18K3
18W 3000K
2226lm
Ø 257mm
Standard
Dimmable
Emergency
BEN MAXI IP40 PG Double Emission
BEN
TECHNICAL DRAWING
Optics
PG diffuser with frosted Acryl-Satiné and impact resistant
diffuser UGR<22. Direct/indirect emission.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
10DI161PGK4
161W: 125W+36W 4000K
21316lm
Ø 1080mm
Standard
Dimmable
Emergency
10DI221PGK4
221W: 185W+36W 4000K
29240lm
Ø 1080mm
Standard
Dimmable
Emergency
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
10DI161PGK3
161W: 125W+36W 3000K
19885lm
Ø 1080mm
Standard
Dimmable
Emergency
10DI221PGK3
221W: 185W+36W 3000K
27255lm
Ø 1080mm
Standard
Dimmable
Emergency
BEN SMALL IP40 PG Double Emission
BEN
TECHNICAL DRAWING
Optics
PG diffuser with frosted Acryl-Satiné and impact resistant diffuser UGR<22. Direct/indirect emission.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
10DI115PGK4
15W: 6W+9W 4000K
2014lm
257mm
Standard
Dimmable
10DI121PGK4
21W: 12W+9W 4000K
2814lm
257mm
Standard
Dimmable
10DI127PGK4
27W: 18W+9W 4000K
3610lm
257mm
Standard
Dimmable
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
10DI115PGK3
15W: 6W+9W 3000K
1889lm
257mm
Standard
Dimmable
10DI121PGK3
21W: 12W+9W 3000K
2633lm
257mm
Standard
Dimmable
Bluetooth
10DI127PGK3
27W: 18W+9W 3000K
3373lm
257mm
Standard
Dimmable

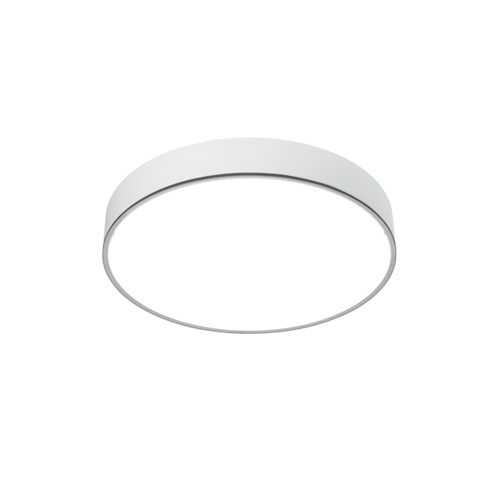

BEN Medium IP40 PG
BEN
TECHNICAL DRAWING
Optics
PG diffuser with frosted Acryl-Satiné and impact resistant diffuser UGR<22.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
10PG15K4
15W 4000K
2111lm
Ø 397mm
Standard
Dimmable
Emergency
10PG21K4
21W 4000K
2887lm
Ø 397mm
Standard
Dimmable
Emergency
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
10PG15K3
15W 3000K
1963lm
Ø 397mm
Standard
Dimmable
Emergency
10PG21K3
21W 3000K
2684lm
Ø 397mm
Standard
Dimmable
Emergency
BEN MEDIUM IP40 PG Double Emission
BEN
TECHNICAL DRAWING
Optics
PG diffuser with frosted Acryl-Satiné and impact resistant diffuser UGR<22. Direct/indirect emission.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
10DI24PGK4
24W: 15W+9W 4000K
3733lm
Ø 397mm
Standard
Dimmable
10DI30PGK4
30W: 21W+9W 4000K
4509lm
Ø 397mm
Standard
Dimmable
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
10DI24PGK3
24W: 15W+9W 3000K
3493lm
Ø 397mm
Standard
Dimmable
10DI30PGK3
30W: 21W+9W 3000K
4214lm
Ø 397mm
Standard
Dimmable
BEN Large IP40 PG
BEN
TECHNICAL DRAWING
Optics
PG diffuser with frosted Acryl-Satiné and impact resistant diffuser UGR<22.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
10PG58K4
58W 4000K
8072lm
Ø 620mm
Standard
Dimmable
Emergency
10PG96K4
96W 4000K
12710lm
Ø 620mm
Standard
Dimmable
Emergency
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
10PG58K3
58W 3000K
7507lm
Ø 620mm
Standard
Dimmable
Emergency
10PG96K3
96W 3000K
11820lm
Ø 620mm
Standard
Dimmable
Emergency
BEN LARGE IP40 PG Double Emission
BEN
TECHNICAL DRAWING
Optics
PG diffuser with frosted Acryl-Satiné and impact resistant diffuser UGR<22. Direct/indirect emission.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
10DI82PGK4
82W: 58W+24W 4000K
11285lm
Ø 620mm
Standard
Dimmable
Emergency
10DI120PGK4
120W: 96W+24W 4000K
15923lm
Ø 620mm
Standard
Dimmable
Emergency
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
10DI84PGK3
82W: 58W+24W 3000K
10536lm
Ø 620mm
Standard
Dimmable
Emergency
10DI136PGK3
120W: 96W+24W 3000K
14849lm
Ø 620mm
Standard
Dimmable
Emergency
BEN XL IP40 PG
BEN
TECHNICAL DRAWING
Optics
PG diffuser with frosted Acryl-Satiné and impact resistant diffuser UGR<22.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
10PG70K4
70W 4000K
9564lm
Ø 850mm
Standard
Dimmable
Emergency
10PG150K4
150W 4000K
20550lm
Ø 850mm
Standard
Dimmable
Emergency
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
10PG70K3
70W 3000K
8895lm
Ø 850mm
Standard
Dimmable
Emergency
10PG150K3
150W 3000K
19111lm
Ø 850mm
Standard
Dimmable
Emergency
BEN XL IP40 PG Double Emission
BEN
TECHNICAL DRAWING
Optics
PG diffuser with frosted Acryl-Satiné and impact resistant
diffuser UGR<22. Direct/indirect emission.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
10DI100PGK4
100W: 70W+30W 4000K
13580lm
Ø 850mm
Standard
Dimmable
Emergency
10DI180PGK4
180W: 150W+30W 4000K
24566lm
Ø 850mm
Standard
Dimmable
Emergency
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
10DI100PGK3
100W: 70W+30W 3000K
12681lm
Ø 850mm
Standard
Dimmable
Emergency
10DI180PGK3
180W: 150W+30W 3000K
22897lm
Ø 850mm
Standard
Dimmable
Emergency
BEN MAXI IP40 PG
BEN
TECHNICAL DRAWING
Optics
PG diffuser with frosted Acryl-Satiné and impact resistant diffuser UGR<22.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
10PG125K4
125W 4000K
16496lm
Ø 1080mm
Standard
Dimmable
Emergency
10PG185K4
185W 4000K
24420lm
Ø 1080mm
Standard
Dimmable
Emergency
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
10PG125K3
125W 3000K
15341lm
Ø 1080mm
Standard
Dimmable
Emergency
10PG185K3
185W 3000K
22711lm
Ø 1080mm
Standard
Dimmable
Emergency
