DIMPLES

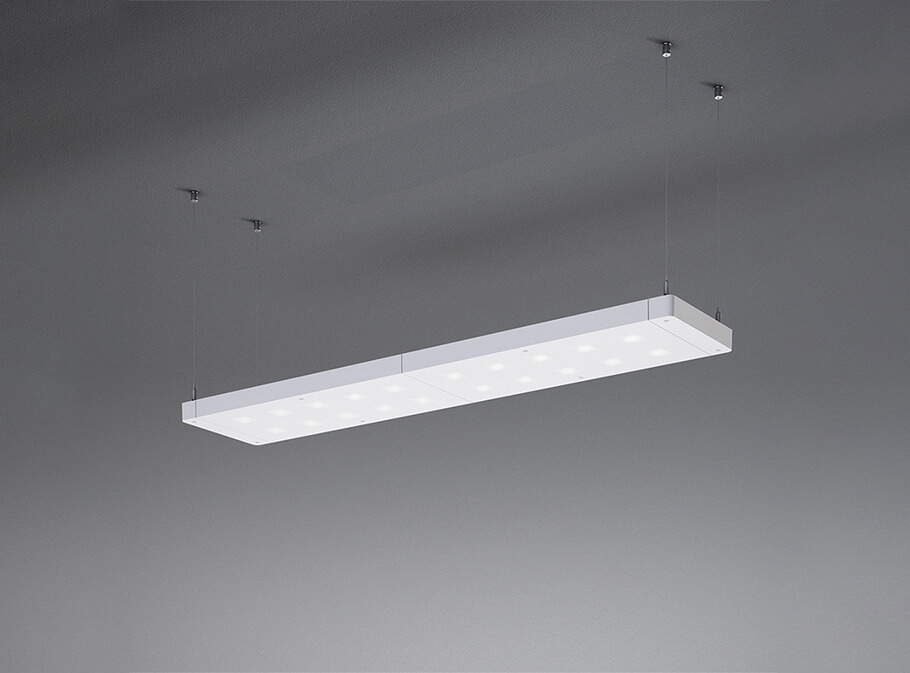

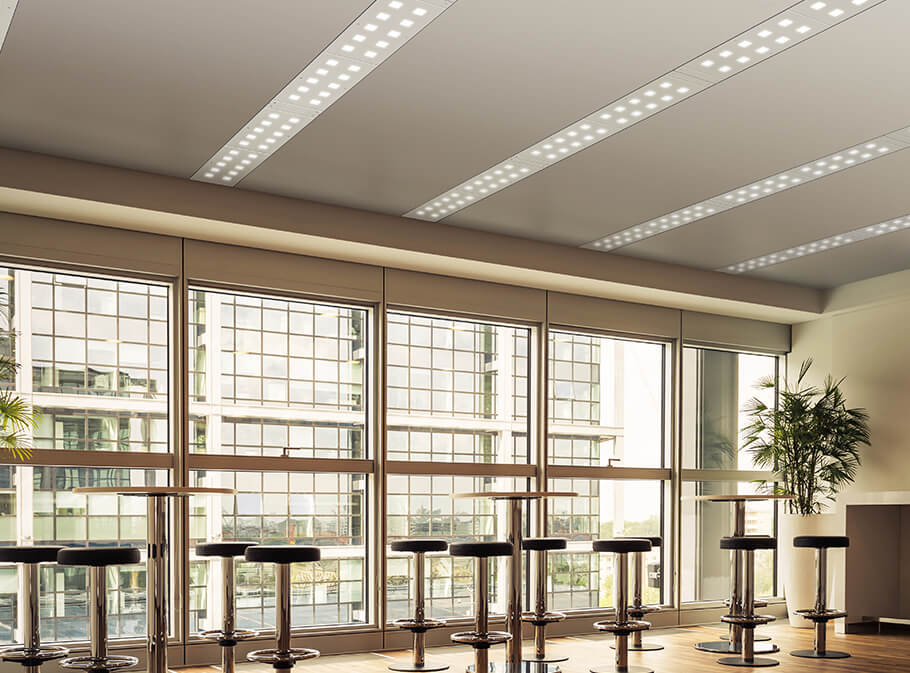

DIMPLES is a recessed, suspended or ceiling mounted installation fixture, characterized by its very shallow profile height of just 38mm, with integrated drivers and unique aesthetics. The individual microcells contain optics that can either be specified for office applications requiring low glare, or for general lighting applications with broad lateral light distribution for core areas, including meeting rooms and breakout spaces. DIMPLES is offered in a wide range of outputs and sizes, for direct only or bidirectional light distribution, making it extremely versatile and a huge step beyond the conventional LED lit lighting panels.
Technical features
Optics
Body
Legal references
Certifications
On request
- Built-in driver
- 3000K/4000K
- >100 lm/W
- CRI>90
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B10 >50.000h
- IP 40
- Direct emission
- Direct/indirect emission
- Primary diffuser in satin PC UGR<16
- PG version with additional coplanar screen in opal PC UGR<22
Satin ABS with anodized aluminum base.
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
- CE Conformity
- Energy efficiency E
- 5 years warranty
- DALI – code D*
- Bluetooth – code BT*
- Emergency 1 hr – code EM*
- Emergency 3 hrs – code EM3H*
* Where available
Technical features
- Built-in driver
- 3000K/4000K
- >100 lm/W
- CRI>90
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B10 >50.000h
- IP 40
Optics
- Direct emission
- Direct/indirect emission
- Primary diffuser in satin PC UGR<16
- PG version with additional coplanar screen in opal PC UGR<22
Body
Satin ABS with anodized aluminum base.
Legal references
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
Certifications
- CE Conformity
- Energy efficiency E
- 5 years warranty
On request
- DALI – code D*
- Bluetooth – code BT*
- Emergency 1 hr – code EM*
- Emergency 3 hrs – code EM3H*
* Where available
DIMPLES
versions
DIMPLES Mini
DIMPLES
DIMPLES Download
TECHNICAL DRAWING
Optics
Satin ABS reflectors with primary PC frosted diffuser, UGR<16.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
48DR10K4
10W 4000K
1144lm
152mm
Standard
48DR13K4
13W 4000K
1487lm
152mm
Standard
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
48DR10K3
10W 3000K
1041lm
152mm
Standard
48DR13K3
13W 3000K
1353lm
152mm
Standard
DIMPLES Long PG Double emission
DIMPLES
DIMPLES Download
TECHNICAL DRAWING
Optics
Satin ABS reflectors with primary PC frosted diffuser with additional frosted PC coplanar screen, UGR<22 and upper diffuser for double emission: direct/indirect.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
48DI52PGK4L
52W: 35W+17W 4000K
5652lm
1195mm
Standard
Dimmable
Emergency
Bluetooth
48DI70PGK4L
70W: 52W+18W 4000K
7608lm
1745mm
Standard
Dimmable
Emergency
Bluetooth
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
48DI52PGK3L
52W: 35W+17W 3000K
5143lm
1195mm
Standard
Dimmable
Emergency
Bluetooth
48DI70PGK3L
70W: 52W+18W 3000K
6923lm
1745mm
Standard
Dimmable
Emergency
Bluetooth
DIMPLES Mini PG
DIMPLES
DIMPLES Download
TECHNICAL DRAWING
Optics
Satin ABS reflectors with primary PC frosted diffuser with additional frosted PC coplanar screen, UGR<22.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
48PG10K4
10W 4000K
1087lm
152mm
Standard
48PG13K4
13W 4000K
1412lm
152mm
Standard
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
48PG10K3
10W 3000K
1087lm
152mm
Standard
48PG13K3
13W 3000K
1412lm
152mm
Standard
DIMPLES
DIMPLES
DIMPLES Download
TECHNICAL DRAWING
Optics
Satin ABS reflectors with primary PC frosted diffuser, UGR<16.
Technical features
- Built-in driver
- >100 lm/W
- CRI>90
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B10 >50.000h
- 5 years warranty
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
48DR44K4
44W 4000K
5132lm
595mm
Standard
Dimmable
Emergency
Bluetooth
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
48DR44K3
44W 3000K
4618lm
595mm
Standard
Dimmable
Emergency
Bluetooth
DIMPLES Double emission
DIMPLES
DIMPLES Download
TECHNICAL DRAWING
Optics
Satin ABS reflectors with primary PC frosted diffuser, UGR<16, and upper diffuser for double emission: direct/indirect.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
48DI60K4
60W: 44W+16W 4000K
6864lm
595mm
Standard
Dimmable
Emergency
Bluetooth
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
48DI60K3
60W: 44W+16W 3000K
6246lm
595mm
Standard
Dimmable
Emergency
Bluetooth
DIMPLES PG
DIMPLES
DIMPLES Download
TECHNICAL DRAWING
Optics
Satin ABS reflectors with primary PC frosted diffuser with additional frosted PC coplanar screen, UGR<22.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
48PG44K4
44W 4000K
4874lm
595mm
Standard
Dimmable
Emergency
Bluetooth
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
48PG44K3
44W 3000K
4435lm
595mm
Standard
Dimmable
Emergency
Bluetooth
DIMPLES PG Double emission
DIMPLES
DIMPLES Download
TECHNICAL DRAWING
Optics
Satin ABS reflectors with primary PC frosted diffuser, UGR<22, and upper diffuser for double emission: direct/indirect.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
48DI60PGK4
60W: 44W+16W 4000K
6521lm
595mm
Standard
Dimmable
Emergency
Bluetooth
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
48DI60PGK3
60W: 44W+16W 3000K
5933lm
595mm
Standard
Dimmable
Emergency
Bluetooth
DIMPLES Long
DIMPLES
DIMPLES Download
TECHNICAL DRAWING
Optics
Satin ABS reflectors with primary PC frosted diffuser, UGR<16.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
48DR35K4L
35W 4000K
4004lm
1195mm
Standard
Dimmable
Emergency
Bluetooth
48DR52K4L
52W 4000K
5949lm
1745mm
Standard
Dimmable
Emergency
Bluetooth
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
48DR35K3L
35W 3000K
3643lm
1195mm
Standard
Dimmable
Emergency
Bluetooth
48DR52K3L
52W 3000K
5413lm
1745mm
Standard
Dimmable
Emergency
Bluetooth
DIMPLES Long Double emission
DIMPLES
DIMPLES Download
TECHNICAL DRAWING
Optics
Satin ABS reflectors with primary PC frosted diffuser, UGR<16, and upper diffuser for double emission: direct/indirect.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
48DI52K4L
52W: 35W+17W 4000K
5949lm
1195mm
Standard
Dimmable
Emergency
Bluetooth
48DI70K4L
70W: 52W+18W 4000K
8008lm
1745mm
Standard
Dimmable
Emergency
Bluetooth
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
48DI52K3L
52W: 35W+17W 3000K
5413lm
1195mm
Standard
Dimmable
Emergency
Bluetooth
48DI70K3L
70W: 52W+18W 3000K
7288lm
1745mm
Standard
Dimmable
Emergency
Bluetooth
DIMPLES Long PG
DIMPLES
DIMPLES Download
TECHNICAL DRAWING
Optics
Satin ABS reflectors with primary PC frosted diffuser with additional frosted PC coplanar screen, UGR<22.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
48PG35K4L
35W 4000K
3804lm
1195mm
Standard
Dimmable
Emergency
Bluetooth
48PG52K4L
52W 4000K
5652lm
1745mm
Standard
Dimmable
Emergency
Bluetooth
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
48PG35K3L
35W 3000K
3461lm
1195mm
Standard
Dimmable
Emergency
Bluetooth
48PG52K3L
52W 3000K
5143lm
1745mm
Standard
Dimmable
Emergency
Bluetooth
