HALL LED CEILING PRO
HALL LED CEILING PRO is the most modern concept of the downlight for ceiling installation developed for elegant dynamic and sophisticated spaces with a clear architectural feature. The slim body design and the PC lenses (15°, 24°, 36°, 50°) with UGR<19 doesn’t compromise the lighting performances. The range of accessories elegantly enriches the customization possibilities.
Technical features
Optics
Body
Legal references
Certifications
On request
- Built-in driver
- 3000K/4000K
- >135 lm/W
- CRI>90
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B10 >50.000h
- IP 44
- Direct emission
- UGR<19
- CoB LED technology
- PC lens 15°-24°-36°-50°
Die-cast aluminum with epoxy powder coating.
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
- CE Conformity
- Energy efficiency E
- 5 years warranty
- DALI – code D on 245mm body
- 2700K – code K27
- 5000K – code K5
Technical features
- Built-in driver
- 3000K/4000K
- >135 lm/W
- CRI>90
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B10 >50.000h
- IP 44
Optics
- Direct emission
- UGR<19
- CoB LED technology
- PC lens 15°-24°-36°-50°
Body
Die-cast aluminum with epoxy powder coating.
Legal references
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
Certifications
- CE Conformity
- Energy efficiency E
- 5 years warranty
On request
- DALI – code D on 245mm body
- 2700K – code K27
- 5000K – code K5
HALL LED CEILING PRO
versions
165mm
245mm
HALL LED CEILING PRO
HALL LED CEILING PRO
HALL LED CEILING PRO Download

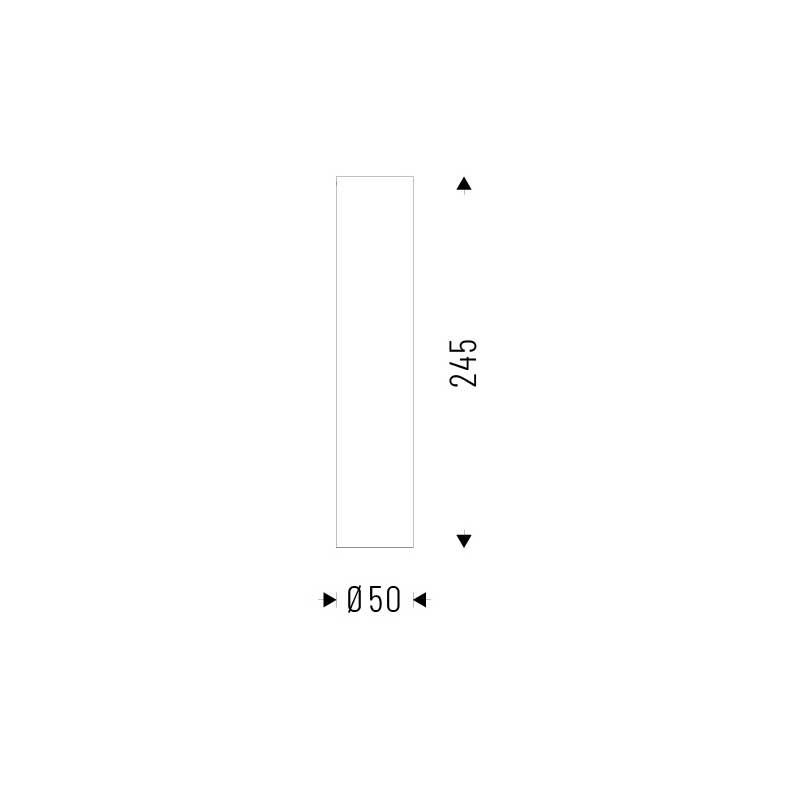

TECHNICAL DRAWING
Optics
PC lens 15°-24°-36°-50°. External ring included.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
28PC15K415
15W 15° 4000K
1635lm
165mm
Standard
28PC15K424
15W 24° 4000K
1635lm
165mm
Standard
28PC15K436
15W 36° 4000K
1635lm
165mm
Standard
28PC15K450
15W 50° 4000K
1635lm
165mm
Standard
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
28PC15K315
15W 15° 3000K
1530lm
165mm
Standard
28PC15K324
15W 24° 3000K
1530lm
165mm
Standard
28PC15K336
15W 36° 3000K
1530lm
165mm
Standard
28PC15K350
15W 50° 3000K
1530lm
165mm
Standard
HALL LED CEILING PRO
HALL LED CEILING PRO
HALL LED CEILING PRO Download
TECHNICAL DRAWING
Optics
PC lens 15°-24°-36°-50°. External ring included.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
28PC15K415L
15W 15° 4000K
1635lm
245mm
Standard
Dimmable
28PC15K424L
15W 24° 4000K
1635lm
245mm
Standard
Dimmable
28PC15K436L
15W 36° 4000K
1635lm
245mm
Standard
Dimmable
28PC15K450L
15W 50° 4000K
1635lm
245mm
Standard
Dimmable
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
28PC15K315L
15W 15° 3000K
1530lm
245mm
Standard
Dimmable
28PC15K324L
15W 24° 3000K
1530lm
245mm
Dimmable
Emergency
Bluetooth
28PC15K336L
15W 36° 3000K
1530lm
245mm
Standard
Dimmable
28PC15K350L
15W 50° 3000K
1530lm
245mm
Standard
Dimmable
