HALL LED GROUND
The HALL LED family expands with the GROUND version, suitable for recessed ground installation to illuminate passageways or green areas.
Technical features
Optics
Body
Legal references
Certifications
On request
- CoB LED technology
- 3000K
- >115 lm/W
- CRI >80
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B10 >50.000h
- IP 67
- IK 10
- -20°C/+40°C
- 20 KN
- MINI AL: polymethacrylate lens, beam angles: 8°-24°-36°
- MINI 1x-2x-4x: frosted glass with single, double, quadruple emission.
- MEDIUM AL: polymethacrylate lens, beam 25°-45°-60°-80°
- MEDIUM HA: intensive asymmetrical lens with internal aluminum reflector
- MEDIUM WA: wide beam asymmetrical lens with internal aluminum reflector
Aluminum with epoxy powder coating.
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
- CE Conformity
- Energy efficiency F – MINI version
- Energy efficiency D – MEDIUM version
- 5 years warranty
- DALI – code D*
- 4000K – code K4*
* Where available
Technical features
- CoB LED technology
- 3000K
- >115 lm/W
- CRI >80
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B10 >50.000h
- IP 67
- IK 10
- -20°C/+40°C
- 20 KN
Optics
- MINI AL: polymethacrylate lens, beam angles: 8°-24°-36°
- MINI 1x-2x-4x: frosted glass with single, double, quadruple emission.
- MEDIUM AL: polymethacrylate lens, beam 25°-45°-60°-80°
- MEDIUM HA: intensive asymmetrical lens with internal aluminum reflector
- MEDIUM WA: wide beam asymmetrical lens with internal aluminum reflector
Body
Aluminum with epoxy powder coating.
Legal references
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
Certifications
- CE Conformity
- Energy efficiency F – MINI version
- Energy efficiency D – MEDIUM version
- 5 years warranty
On request
- DALI – code D*
- 4000K – code K4*
* Where available
HALL LED GROUND
versions

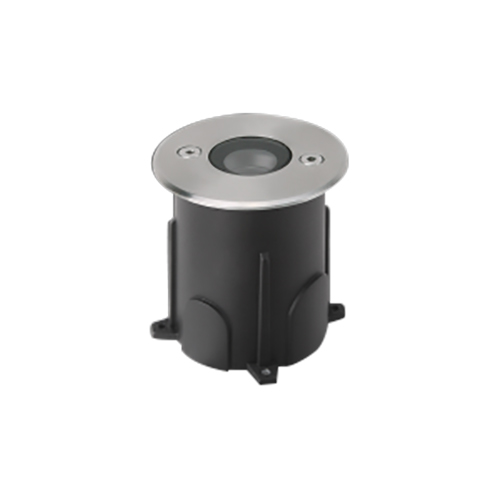

HALL LED GROUND MINI ACCENT LIGHT
HALL LED GROUND
HALL LED GROUND Download
TECHNICAL DRAWING
Optics
Internal polymetacrilate lens. Beam angle: 8°-24°-36°. Cut-off>30°.
Technical features
- CoB LED technology
- >115 lm/W
- CRI >80
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B10 >50.000h
- -20°C/+40°C
- 20 KN
- 5 years warranty
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
38AL3K38T67
3W 8° 3000K
189lm
Ø 68mm
Drivers to be ordered separately
38AL3K324T67
3W 24° 3000K
189lm
Ø 68mm
Drivers to be ordered separately
38AL3K336T67
3W 36° 3000K
189lm
Ø 68mm
Drivers to be ordered separately

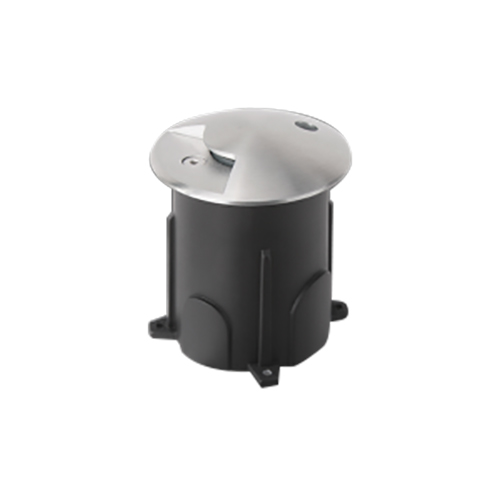

HALL LED GROUND MINI 1X
HALL LED GROUND
HALL LED GROUND Download
TECHNICAL DRAWING
Optics
Satin glass with single emission mask. Cut-off>30°.
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
38HS3K3T67
3W 3000K
189lm
Ø 68mm
Drivers to be ordered separately
HALL LED GROUND MINI 2X
HALL LED GROUND
HALL LED GROUND Download
TECHNICAL DRAWING
Optics
Satin glass with double emission mask. Cut-off>30°.
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
38HD3K3T67
3W 3000K
189lm
Ø 68mm
Drivers to be ordered separately

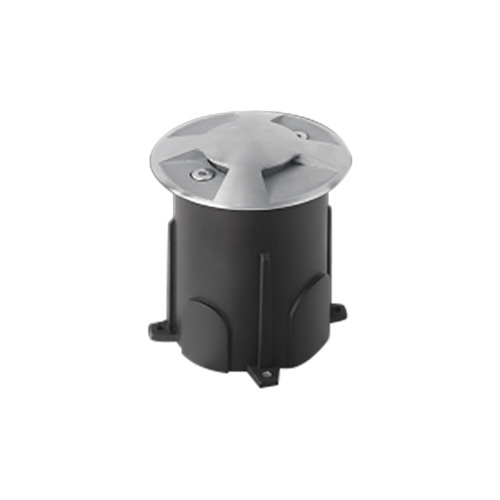

HALL LED GROUND MINI 4X
HALL LED GROUND
HALL LED GROUND Download
TECHNICAL DRAWING
Optics
Satin glass with quadruple emission mask. Cut-off>30°
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
38HQ3K3T67
3W 3000K
189lm
Ø 68mm
Drivers to be ordered separately

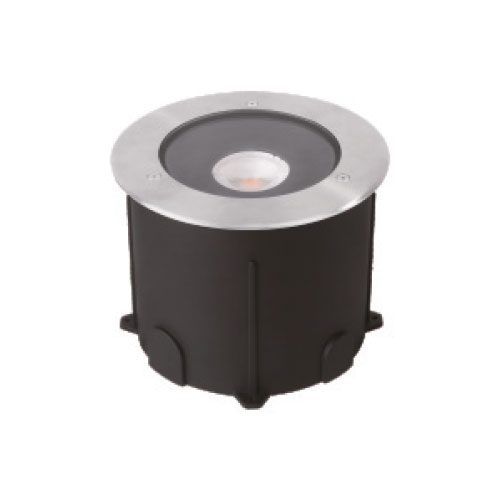

HALL LED GROUND MEDIUM ACCENT LIGHT
HALL LED GROUND
HALL LED GROUND Download
TECHNICAL DRAWING
Optics
Internal polymetacrilate lens.
Beam angles: 25°-45°-60°-80°. Cut-off>30°.
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
38AL13K325TM67
13W 25° 3000K
1495lm
Ø 175mm
Standard
38AL13K345TM67
13W 45° 3000K
1495lm
Ø 175mm
Standard
38AL13K360TM67
13W 60° 3000K
1495lm
Ø 175mm
Standard
38AL13K380TM67
13W 80° 3000K
1495lm
Ø 175mm
Standard

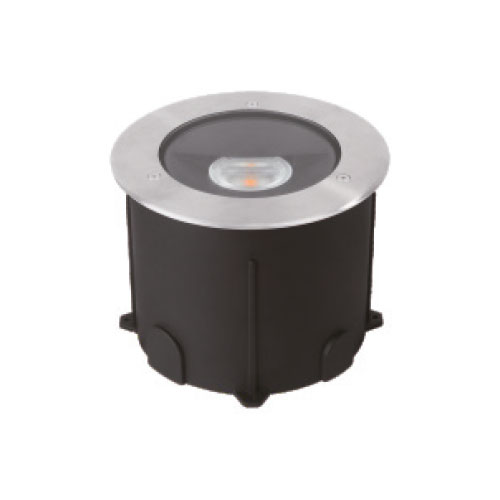

HALL LED GROUND MEDIUM HIGH WALLWASHER
HALL LED GROUND
HALL LED GROUND Download
TECHNICAL DRAWING
Optics
Internal polymetacrilate lens. Beam angles: 25°-45°-60°-80°. Cut-off>30°.
Technical features
- CoB LED technology
- >115 lm/W
- CRI >80
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B10 >50.000h
- -20°C/+40°C
- 20 KN
- 5 years warranty
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
38HA13K3TM67
13W 3000K
1495lm
Ø 175mm
Standard
HALL LED GROUND MEDIUM WIDE WALLWASHER
HALL LED GROUND
HALL LED GROUND Download
TECHNICAL DRAWING
Optics
Internal polymetacrilate lens. Beam angles: 25°-45°-60°-80°. Cut-off>30°.
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
38WA13K3TM67
13W 3000K
1495lm
Ø 175mm
Standard
