Internal aluminum reflectors.
CUT OFF > 30°.

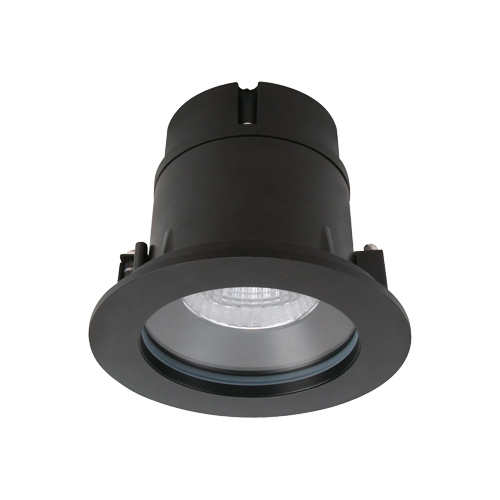

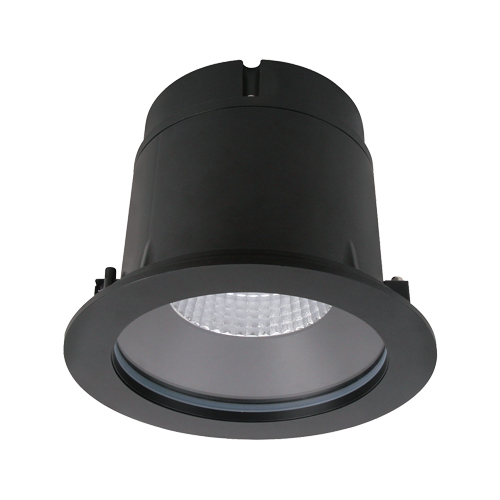

HALL LED IP65
Series of LED Downlights for a functional and architectural lighting, which enhances the elements of the space, keeping behind the scenes: thanks to the integrated driver can always offer elegant and compact solutions. The high degree of protection makes hall led IP65 suitable also for outdoor protected areas.
Specifications
Optics
Body
Legal references
On request
CoB LED technology
Integrated driver
CRI>90
Mac Adams 3
Life Time: L80/B10 >50.000h
5 years complete warranty
Eye safety: RG0/RG1 in accordance with EN62471:2009
EASY: internal aluminium reflectors from 15°- 24°- 36°- 50° beam angles
MEDIUM e LARGE: internal aluminium reflectors from 10°- 12°- 20°- 40°- 70° beam angles
Manufactured from pressure die-cast aluminum with epoxy powder coating.
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
Wiring DALI dimmable – Code: D (verify the version available)
Colour Temperature 5000K
Specifications
CoB LED technology
Integrated driver
CRI>90
Mac Adams 3
Life Time: L80/B10 >50.000h
5 years complete warranty
Eye safety: RG0/RG1 in accordance with EN62471:2009
Optics
EASY: internal aluminium reflectors from 15°- 24°- 36°- 50° beam angles
MEDIUM e LARGE: internal aluminium reflectors from 10°- 12°- 20°- 40°- 70° beam angles
Body
Manufactured from pressure die-cast aluminum with epoxy powder coating.
Legal references
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
On request
Wiring DALI dimmable – Code: D (verify the version available)
Colour Temperature 5000K
HALL LED IP65
versions
Downlight
HALL LED IP65 EASY
HALL LED IP65
HALL LED IP65 Download
TECHNICAL DRAWING
Optics
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
38VT6K415E65
6W 15° 4000K
599lm
100mm
Standard
38VT6K424E65
6W 24° 4000K
599lm
100mm
Standard
38VT6K436E65
6W 36° 4000K
599lm
100mm
Standard
38VT6K450E65
6W 50° 4000K
599lm
100mm
Standard
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
38VT6K315E65
6W 15° 3000K
579lm
100mm
Standard
38VT6K324E65
6W 24° 3000K
579lm
100mm
Standard
38VT6K336E65
6W 36° 3000K
579lm
100mm
Standard
38VT6K350E65
6W 50° 3000K
579lm
100mm
Standard
