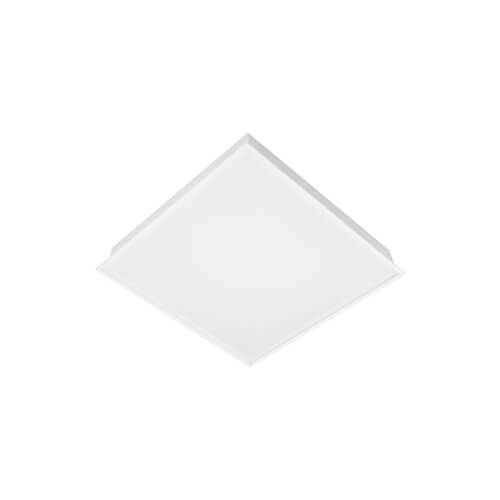

ISIB LED IP54
ISIB LED IP54 fixtures with back light LED technology are the perfect mix between competitiveness, performance and flexibility. Perfect homogeneous emission thanks to the frosted or microprismatic diffuser. The IP54 rating make it also suitable for environments where a high degree of protection is required. Ideal for false ceilings with exposed structure, ISIB LED IP54 can be installed also on plasterboard thanks to the dedicated accessory.
Technical features
Optics
Body
Legal References
Certifications
On request
- Built-in driver
- Quick connector for easy wiring
- 3000K/4000K
- >112 lm/W
- CRI>90
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B10 >50.000h
- IP 54 visible side
- Direct emission
- High homogeneity satin acrylic diffuser glued to the body, UGR<22
- Additional microprismatic plate applied on the structure, UGR<19
Steel sheet with with epoxy powder coating.
In compliance with the safety standards EN 60 598-1
and UNI EN 12464-1 (lighting for working places).
- CE Conformity
- Energy efficiency D
- 5 years warranty
- DALI – code D
- Bluetooth – code BT*
- Emergency 1 hr – code EM
- Emergency 3 hrs – code EM3H*
- False ceiling version 625x625mm*
- Ceiling mount installation kit*
- 5000K – code K5*
* Where available
Technical features
- Built-in driver
- Quick connector for easy wiring
- 3000K/4000K
- >112 lm/W
- CRI>90
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B10 >50.000h
- IP 54 visible side
Optics
- Direct emission
- High homogeneity satin acrylic diffuser glued to the body, UGR<22
- Additional microprismatic plate applied on the structure, UGR<19
Body
Steel sheet with with epoxy powder coating.
Legal References
In compliance with the safety standards EN 60 598-1
and UNI EN 12464-1 (lighting for working places).
Certifications
- CE Conformity
- Energy efficiency D
- 5 years warranty
On request
- DALI – code D
- Bluetooth – code BT*
- Emergency 1 hr – code EM
- Emergency 3 hrs – code EM3H*
- False ceiling version 625x625mm*
- Ceiling mount installation kit*
- 5000K – code K5*
* Where available
ISIB LED IP54
versions
PG optic - UGR<19
PG optic UGR <22
ISIB LED IP54 PG
ISIB LED IP54
ISIB LED IP54 Download
TECHNICAL DRAWING
Optics
- Built-in driver
- Quick connector for easy wiring
- >112 lm/W
- CRI>90
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B10 >50.000h
- 5 years warrant
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
34PG34K454
34W 4000K
3952lm
596x596mm
Standard
Dimmable
Emergency
34PG55K454
55W 4000K
6175lm
596x596mm
Standard
Dimmable
Emergency
34PG34K4M354
34W 4000K
3952lm
296x1196mm
Standard
Dimmable
Emergency
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
34PG34K354
34W 3000K
3786lm
596x596mm
Standard
Dimmable
Emergency
34PG55K354
55W 3000K
5558lm
596x596mm
Standard
Dimmable
Emergency
34PG34K3M354
34W 3000K
3786lm
296x1196mm
Standard
Dimmable
Emergency
