PROFREEL

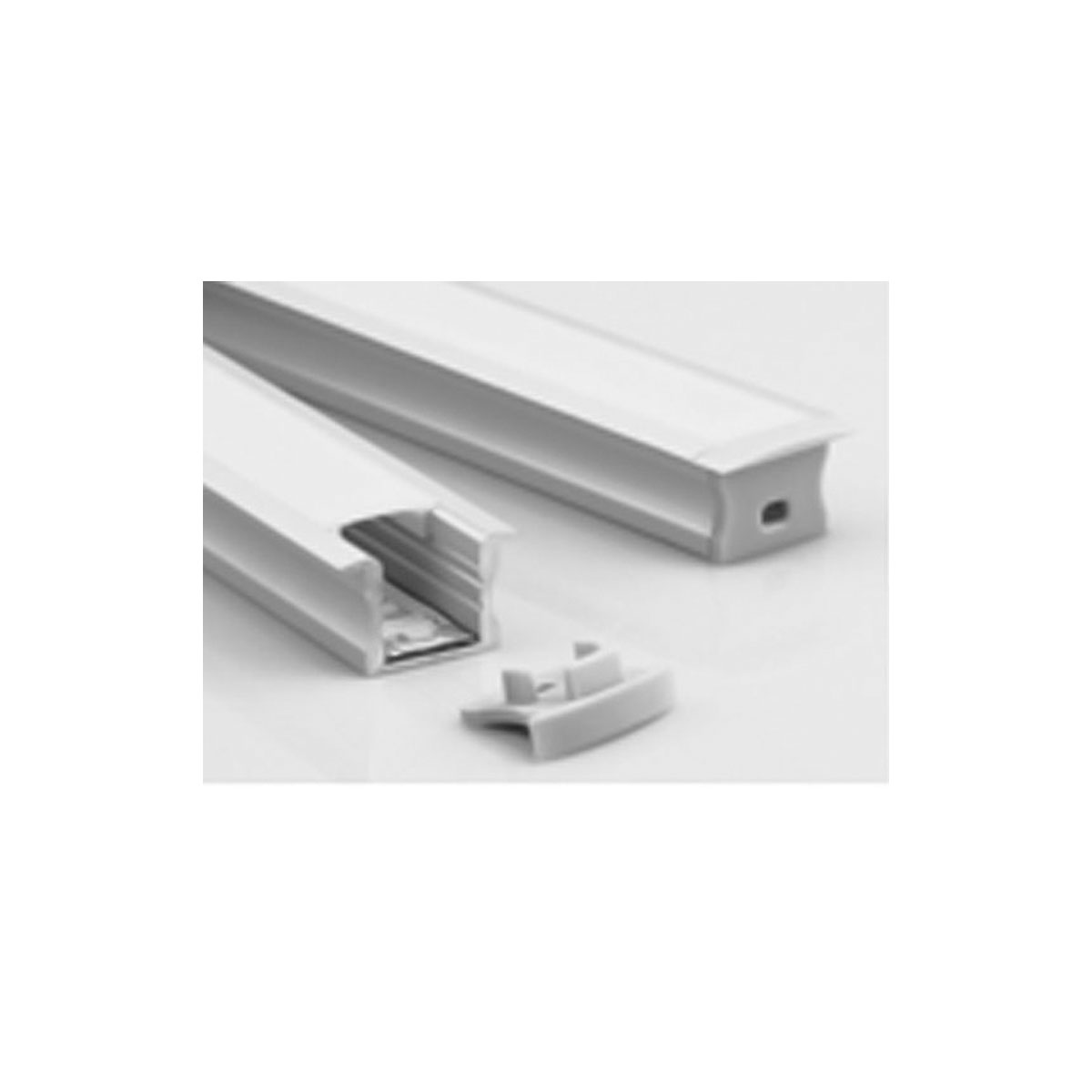

PROFREEL is a fixture series for ceiling, suspension or frameless recessed mounting, fully customizable directly on site. The device consists of an aluminum body supplied in lengths of up to 3 meters, electronic components (driver and LED strip), that can be selected according to the site needs. The PG methacrylate diffuser is supplied in a 10m coil to be measured and cut on site to realize bright lines of perfectly homogeneous light without interruptions. PROFREEL allows the application of LED strip even on top of the profile, to achieve bi-directional light distribution. The possibility to integrate the driver inside of the lamp body is its main advantage: this way the installation is simplified and the aesthetics improved.
Technical features
Optics
Body
Legal references
Certifications
On request
- Driver and modules in 24V voltage
- Luminaire with end caps included
- 2700K/3000K/4000K/5000K/TW/RGBW/DTW
- CRI>90
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B10 >50.000h
- IP 20; IP 40
- Direct emission
- Direct/indirect emission
- Homogeneous extruded satin methacrylate screen UGR<22
Aluminum with epoxy powder coating.
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
- CE Conformity
- RETILAP Conformity
- Energy efficiency F
- 5 years warranty
- DALI – code D
- Emergency 1 hr – code EM*
- Emergency 3 hrs – code EM3H*
- 5000K – code K5*
* Where available
Technical features
- Driver and modules in 24V voltage
- Luminaire with end caps included
- 2700K/3000K/4000K/5000K/TW/RGBW/DTW
- CRI>90
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B10 >50.000h
- IP 20; IP 40
Optics
- Direct emission
- Direct/indirect emission
- Homogeneous extruded satin methacrylate screen UGR<22
Body
Aluminum with epoxy powder coating.
Legal references
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
Certifications
- CE Conformity
- RETILAP Conformity
- Energy efficiency F
- 5 years warranty
On request
- DALI – code D
- Emergency 1 hr – code EM*
- Emergency 3 hrs – code EM3H*
- 5000K – code K5*
* Where available
PROFREEL
versions
Profreel IS
Profreel
PROFREEL IS
PROFREEL
PROFREEL Download
TECHNICAL DRAWING
Optics
Antistatic satin methacrylate diffuser screen, UGR<22. Luminaire complete with 10W/m strip, heads and converter.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
83PG6K4
5.5W 4000K
529lm
578mm
Standard
Dimmable
Emergency
83PG8K4
8W 4000K
769lm
848mm
Standard
Dimmable
Emergency
83PG11K4
11W 4000K
1058lm
1128mm
Standard
Dimmable
Emergency
83PG14K4
13.5W 4000K
1298lm
1408mm
Standard
Dimmable
Emergency
83PG17K4
16.5W 4000K
1586lm
1688mm
Standard
Dimmable
Emergency
83PG25K4
25W 4000K
2404lm
2530mm
Standard
Dimmable
Emergency
83PG31K4
30.5W 4000K
2932lm
3090mm
Standard
Dimmable
Emergency
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
83PG6K3
5.5W 3000K
457lm
578mm
Standard
Dimmable
Emergency
83PG8K3
8W 3000K
664lm
848mm
Standard
Dimmable
Emergency
83PG11K3
11W 3000K
914lm
1128mm
Standard
Dimmable
Emergency
83PG14K3
13.5W 3000K
1121lm
1408mm
Standard
Dimmable
Emergency
83PG17K3
16.5W 3000K
1371lm
1688mm
Standard
Dimmable
Emergency
83PG25K3
25W 3000K
2077lm
2530mm
Standard
Dimmable
Emergency
83PG31K3
30.5W 3000K
2534lm
3090mm
Standard
Dimmable
Emergency
Datasheets
2700K
code
flux
size
wiring
datasheet
specification items
83PG6L2790
5.5W 2700K
428lm
578mm
Standard
Dimmable
Emergency
83PG8L2790
8W 2700K
622lm
848mm
Standard
Dimmable
Emergency
83PG11L2790
11W 2700K
856lm
1128mm
Standard
Dimmable
Emergency
83PG14L2790
13.5W 2700K
1050lm
1408mm
Standard
Dimmable
Emergency
83PG17L2790
16.5W 2700K
1282lm
1688mm
Standard
Dimmable
Emergency
83PG25L2790
25W 2700K
1944lm
2530mm
Standard
Dimmable
Emergency
83PG31L2790
30.5W 2700K
2371lm
3090mm
Standard
Dimmable
Emergency
PROFREEL
PROFREEL
PROFREEL Download
TECHNICAL DRAWING
Optics
Aluminum profile for ceiling, suspension and recessed applications.
Datasheets
code
flux
size
wiring
datasheet
specification items
83AA1000
1000mm
Standard
83AA2000
2000mm
Standard
83AA2700
2700mm
Standard
83AA3000
3000mm
Standard
PROFREEL FLEX STRIP
PROFREEL
PROFREEL Download
Description
Adhesive LED strips can be sectioned every 50 mm. CRI>90 24V.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
83SL10K4
10W/mt 4000K
940lm/mt
5000mm
Standard
83SL15K4
15W/mt 4000K
1283lm/mt
5000mm
Standard
83SL20K4
20W/mt 4000K
1616lm/mt
5000mm
Standard
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
83SL10K3
10W/mt 3000K
813lm/mt
5000mm
Standard
83SL15K3
15W/mt 3000K
1155lm/mt
5000mm
Standard
83SL20K3
20W/mt 3000K
1598lm/mt
5000mm
Standard
Datasheets
2700K
code
flux
size
wiring
datasheet
specification items
83SL10L2790
10W/mt 2700K
760lm/mt
5000mm
Standard
83SL15L2790
15W/mt 2700K
1077lm/mt
5000mm
Standard
83SL20L2790
20W/mt 2700K
1578lm/mt
5000mm
Standard
PROFREEL FAST CONNECTORS
PROFREEL
PROFREEL Download
Description
Fast connectors of start and continuous line.
Datasheets
code
flux
size
wiring
datasheet
specification items
83CRIL500
Standard
83CRCL
Standard
PROFREEL CONVERTER
PROFREEL
PROFREEL Download
Description
The driver should be selected according to the power of led strips
you intend to use, and its length.
you intend to use, and its length.
Datasheets
code
flux
size
wiring
datasheet
specification items
83LC2024
20W 24V
237x30mm
Standard
83LC6024
60W 24V
280x30mm
Standard
83LC10024D
100W 24V
425x30mm
Dimmable
83LC10024IS
100W 24V
300x40mm
Standard
83LC18024IS
180W 24V
280x64mm
Standard
83LC15024ISD
150W 24V
325x30mm
Dimmable
83LC3524ISBT
35W 24V
Bluetooth
83LC6024ISBT
60W 24V
Bluetooth
83LC10024ISBT
100W 24V
Bluetooth
83LC15024ISBT
150W 24V
Bluetooth
PROFREEL PG SCREEN
PROFREEL
PROFREEL Download
Optics
PG diffuser
Description
PG diffuser from 1000mm / 2000mm / 3000mm
Datasheets
code
flux
size
wiring
datasheet
specification items
83PG1000
1000mm
Standard
83PG2000
2000mm
Standard
83PG3000
3000mm
Standard
PROFREEL CLD SCREEN
PROFREEL
PROFREEL Download
Optics
CLD diffuser, collimated optic UGR<16.
Description
CLD diffuser from 1000mm / 2000mm / 3000mm
Datasheets
code
flux
size
wiring
datasheet
specification items
83CLD1000
1000mm
Standard
83CLD2000
2000mm
Standard
83CLD3000
3000mm
Standard
