QI
QI is an exciting lighting concept set to revolutionize the way designers consider traditional 3-circuit lighting track applications. Perfect for retrofit or new designs, QI fits seamlessly within regular EU tracks. The types of applications are only restricted by the designers imagination, its wide range of power and outputs, integrated driver, choice of beam angles including asymmetric light distribution, make QI perfect for retail, museum, educational and commercial projects, just to name but a few.
Technical features
Optics
Body
Legal references
Certifications
On request
- Built-in driver
- 3000K/4000K
- >90 lm/W; >105 lm/W
- CRI>90
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B20 >80.000h
- IP 40
- Direct emission
- Satin methacrylate diffuser for wide beam emission
- Polycarbonate lens for asymmetrical emission
- Aluminum with polycarbonate electric adapter
- Compatible with EU Track rails
In compliance with the safety standards EN 60 598-1
and UNI EN 12464-1 (lighting for working places).
- CE Conformity
- RETILAP Conformity
- Energy efficiency D
- 5 years warranty
- DALI – code D*
* Where available
Technical features
- Built-in driver
- 3000K/4000K
- >90 lm/W; >105 lm/W
- CRI>90
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B20 >80.000h
- IP 40
Optics
- Direct emission
- Satin methacrylate diffuser for wide beam emission
- Polycarbonate lens for asymmetrical emission
Body
- Aluminum with polycarbonate electric adapter
- Compatible with EU Track rails
Legal references
In compliance with the safety standards EN 60 598-1
and UNI EN 12464-1 (lighting for working places).
Certifications
- CE Conformity
- RETILAP Conformity
- Energy efficiency D
- 5 years warranty
On request
- DALI – code D*
* Where available
QI
versions
PG optic - UGR <22
AS-DX optic
AS-SX optic
QI PG Low Power
QI

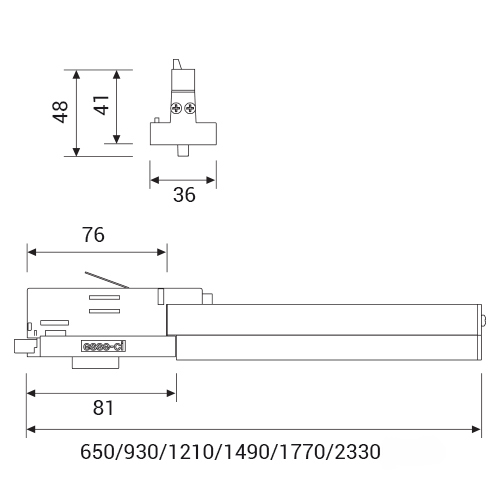

TECHNICAL DRAWING
Optics
Methacrylate satin antistatic diffuser screen, UGR<22. ILC (Indirect Light Control) technology for partially indirect emission.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
19PG12K4
12W 4000K
1185lm
650mm
Standard
19PG18K4
18W 4000K
1777lm
930mm
Standard
19PG24K4
24W 4000K
2368lm
1210mm
Standard
19PG30K4
30W 4000K
2961lm
1490mm
Standard
19PG36K4
36W 4000K
3553lm
1770mm
Standard
19PG48K4
48W 4000K
4739lm
2330mm
Standard
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
19PG12K3
12W 3000K
1135lm
650mm
Standard
19PG18K3
18W 3000K
1703lm
930mm
Standard
19PG24K3
24W 3000K
2270lm
1210mm
Standard
19PG30K3
30W 3000K
2838lm
1490mm
Standard
19PG36K3
36W 3000K
3406lm
1770mm
Standard
19PG48K3
48W 3000K
4541lm
2330mm
Standard
QI PG High Power
QI
TECHNICAL DRAWING
Optics
Methacrylate satin antistatic diffuser screen, UGR<22. ILC (Indirect Light Control) technology for partially indirect emission.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
19PG24K4HP
24W 4000K
2457lm
650mm
Standard
19PG36K4HP
36W 4000K
3686lm
930mm
Standard
19PG48K4HP
48W 4000K
4915lm
1210mm
Standard
19PG60K4HP
60W 4000K
6144lm
1490mm
Standard
19PG72K4HP
72W 4000K
7372lm
1770mm
Standard
19PG96K4HP
96W 4000K
9830lm
2330mm
Standard
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
19PG24K3HP
24W 3000K
2376lm
650mm
Standard
19PG36K3HP
36W 3000K
3564lm
930mm
Standard
19PG48K3HP
48W 3000K
4752lm
1210mm
Standard
19PG60K3HP
60W 3000K
5940lm
1490mm
Standard
19PG72K3HP
72W 3000K
7128lm
1770mm
Standard
19PG96K3HP
96W 3000K
9504lm
2330mm
Standard
QI AS-DX Low Power
QI

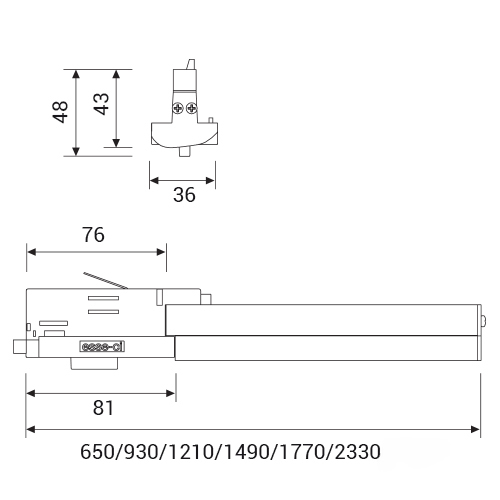

TECHNICAL DRAWING
Optics
Polycarbonate lens for asymmetrical beam. Maximum installation height: 3 meters.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
19AS12K4DX
12W 4000K
1487lm
650mm
Standard
19AS18K4DX
18W 4000K
2232lm
930mm
Standard
19AS24K4DX
24W 4000K
2976lm
1210mm
Standard
19AS30K4DX
30W 4000K
3719lm
1490mm
Standard
19AS36K4DX
36W 4000K
4463lm
1770mm
Standard
19AS48K4DX
48W 4000K
5950lm
2330mm
Standard
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
19AS12K3DX
12W 3000K
1439lm
650mm
Standard
19AS18K3DX
18W 3000K
2158lm
930mm
Standard
19AS24K3DX
24W 3000K
2878lm
1210mm
Standard
19AS30K3DX
30W 3000K
3597lm
1490mm
Standard
19AS36K3DX
36W 3000K
4316lm
1770mm
Standard
19AS48K3DX
48W 3000K
5755lm
2330mm
Standard
QI AS-DX High Power
QI
TECHNICAL DRAWING
Optics
Polycarbonate lens for asymmetrical beam. Maximum installation height: 3 meters.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
19AS24K4HPDX
24W 4000K
2976lm
650mm
Standard
19AS36K4HPDX
36W 4000K
4463lm
930mm
Standard
19AS48K4HPDX
48W 4000K
5951lm
1210mm
Standard
19AS60K4HPDX
60W 4000K
7438lm
1490mm
Standard
19AS72K4HPDX
72W 4000K
8925lm
1770mm
Standard
19AS96K4HPDX
96W 4000K
11900lm
2330mm
Standard
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
19AS24K3HPDX
24W 3000K
2878lm
650mm
Standard
19AS36K3HPDX
36W 3000K
4316lm
930mm
Standard
19AS48K3HPDX
48W 3000K
5755lm
1210mm
Standard
19AS60K3HPDX
60W 3000K
7194lm
1490mm
Standard
19AS72K3HPDX
72W 3000K
8633lm
1770mm
Standard
19AS96K3HPDX
96W 3000K
11510lm
2330mm
Standard
QI AS-SX Low Power
QI
TECHNICAL DRAWING
Optics
Polycarbonate lens for asymmetrical beam. Maximum installation height: 3 meters.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
19AS12K4SX
12W 4000K
1487lm
650mm
Standard
19AS18K4SX
18W 4000K
2232lm
930mm
Standard
19AS24K4SX
24W 4000K
2976lm
1210mm
Standard
19AS30K4SX
30W 4000K
3719lm
1490mm
Standard
19AS36K4SX
36W 4000K
4463lm
1770mm
Standard
19AS48K4SX
48W 4000K
5950lm
2330mm
Standard
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
19AS12K3SX
12W 3000K
1439lm
650mm
Standard
19AS18K3SX
18W 3000K
2158lm
930mm
Standard
19AS24K3SX
24W 3000K
2878lm
1210mm
Standard
19AS30K3SX
30W 3000K
3597lm
1490mm
Standard
19AS36K3SX
36W 3000K
4316lm
1770mm
Standard
19AS48K3SX
48W 3000K
5755lm
2330mm
Standard
QI AS-SX High Power
QI
TECHNICAL DRAWING
Optics
Polycarbonate lens for asymmetrical beam. Maximum installation height: 3 meters.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
19AS24K4HPSX
24W 4000K
2976lm
650mm
Standard
19AS36K4HPSX
36W 4000K
4463lm
930mm
Standard
19AS48K4HPSX
48W 4000K
5951lm
1210mm
Standard
19AS60K4HPSX
60W 4000K
7438lm
1490mm
Standard
19AS72K4HPSX
72W 4000K
8925lm
1770mm
Standard
19AS96K4HPSX
96W 4000K
11900lm
2330mm
Standard
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
19AS24K3HPSX
24W 3000K
2878lm
650mm
Standard
19AS36K3HPSX
36W 3000K
4316lm
930mm
Standard
19AS48K3HPSX
48W 3000K
5755lm
1210mm
Standard
19AS60K3HPSX
60W 3000K
7194lm
1490mm
Standard
19AS72K3HPSX
72W 3000K
7194lm
1770mm
Standard
19AS96K3HPSX
96W 3000K
11510lm
2330mm
Standard
QI PG – Food
QI
TECHNICAL DRAWING
Optic
Methacrylate satin antistatic diffuser screen, UGR<22.
LIC (Lateral indirect Control) technology for partially indirect emission.
LIC (Lateral indirect Control) technology for partially indirect emission.
Datasheets
code
flux
size
wiring
datasheet
specification items
19PG24FM
24W FRESH MEAT
960lm
650mm
Standard
19PG36FM
36W FRESH MEAT
1440lm
930mm
Standard
19PG48FM
48W FRESH MEAT
1920lm
1210mm
Standard
19PG60FM
60W FRESH MEAT
2400lm
1490mm
Standard
19PG72FM
72W FRESH MEAT
2880lm
1770mm
Standard
19PG96FM
96W FRESH MEAT
3840lm
2330mm
Standard
19PG144FM
144W FRESH MEAT
5760lm
3450mm
Standard
19PG24VG
24W VEG PLUS
1296lm
650mm
Standard
19PG36VG
36W VEG PLUS
1944lm
930mm
Standard
19PG48VG
48W VEG PLUS
2592lm
1210mm
Standard
19PG60VG
60W VEG PLUS
3240lm
1490mm
Standard
19PG72VG
72W VEG PLUS
3888lm
1770mm
Standard
19PG96VG
96W VEG PLUS
5184lm
2330mm
Standard
19PG144VG
144W VEG PLUS
7776lm
3450mm
Standard
