TERES
TERES is the sophisticated and professional track spot that, thanks to the built-in driver, compact design and advanced technology, has managed to hit the spot in the retail world, adapting completely to any environment without being invasive. Its technical vocation is also suitable for areas that need more decisive lighting thanks to the High Flux version, with efficiencies up to 110lm/W. The Wall Washer version with asymmetrical beam and the new HF FOOD version, dedicated to the best color rendering of food, complete a range that has now become the reference point in the world of spotlights.
Technical features
Optics
Body
Legal references
Certifications
On request
- Built-in driver
- CoB LED technology
- 3000K/4000K
- >110 lm/W
- CRI>90
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B10 >50.000h
- IP 40
- Direct emission
- Internal aluminum reflectors, beam angles: 10°-15°-20°-36°-40°-50°-70°
- ZOOM: internal aluminum reflector with adjustable emission from 25° to 60°
- Polycarbonate lens
- Asymmetrical beam for Wall Washer
Die-cast aluminum with epoxy powder coating
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
- CE Conformity
- BIS Conformity
- RETILAP Conformity
- ETL Conformity
- Energy efficiency C
- 5 years warranty
- ETL Certification
- DALI – code D*
- Bluetooth – code BT*
- 2700K – code: K27*
- 5000K – code: K5*
* Where available
Technical features
- Built-in driver
- CoB LED technology
- 3000K/4000K
- >110 lm/W
- CRI>90
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B10 >50.000h
- IP 40
Optics
- Direct emission
- Internal aluminum reflectors, beam angles: 10°-15°-20°-36°-40°-50°-70°
- ZOOM: internal aluminum reflector with adjustable emission from 25° to 60°
- Polycarbonate lens
- Asymmetrical beam for Wall Washer
Body
Die-cast aluminum with epoxy powder coating
Legal references
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
Certifications
- CE Conformity
- BIS Conformity
- RETILAP Conformity
- ETL Conformity
- Energy efficiency C
- 5 years warranty
- ETL Certification
On request
- DALI – code D*
- Bluetooth – code BT*
- 2700K – code: K27*
- 5000K – code: K5*
* Where available
TERES
versions
Teres HF
Teres zoom
Teres WW
TERES MINI
TERES

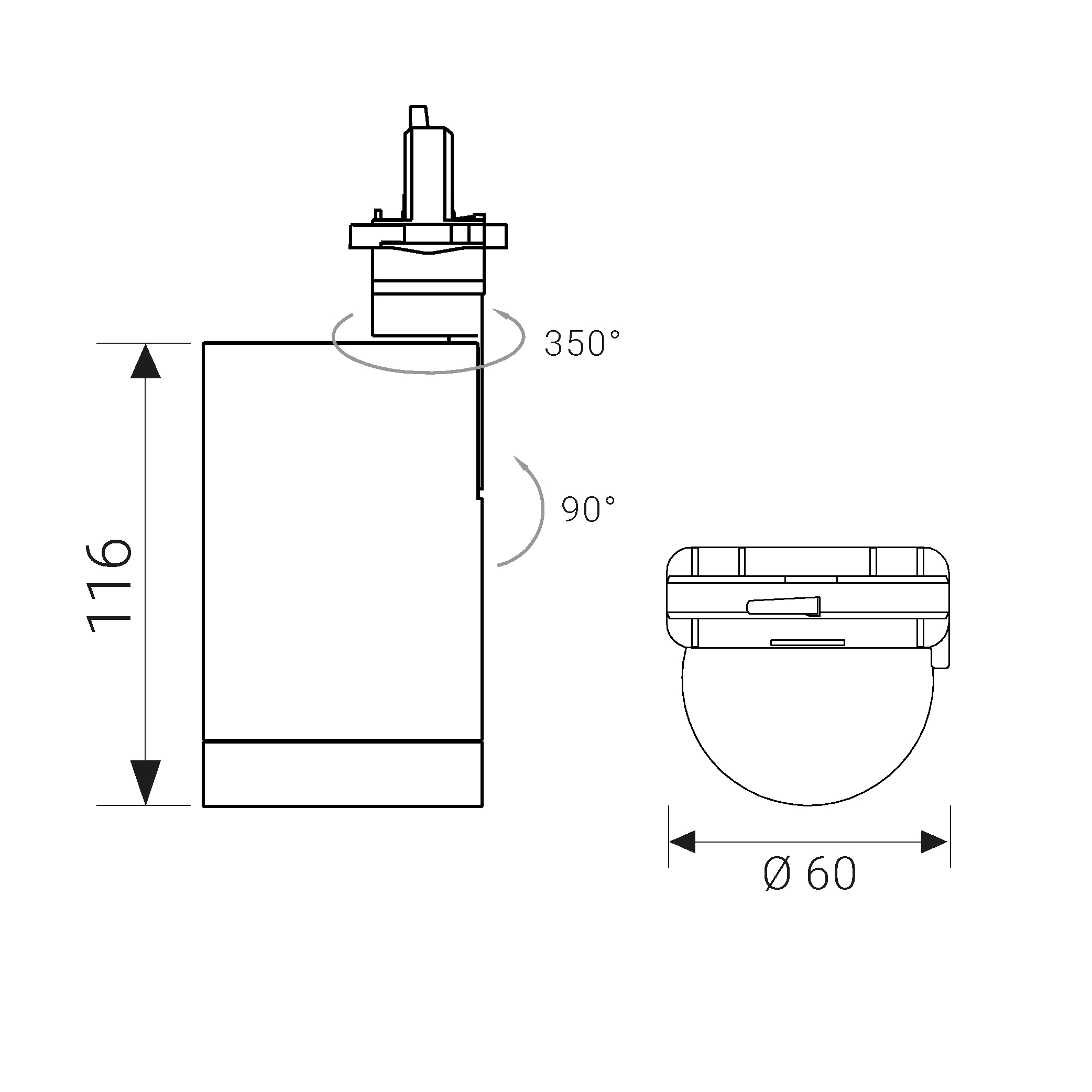

TECHNICAL DRAWING
Optics
Internal aluminum reflectors.
Beam angles: 15°-20°-36°-50°.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
14VT6K415
6W 15° 4000K
1094lm
Ø 60mm
Standard
14VT6K420
6W 20° 4000K
1094lm
Ø 60mm
Standard
14VT6K436
6W 36° 4000K
1094lm
Ø 60mm
Standard
14VT6K450
6W 50° 4000K
1094lm
Ø 60mm
Standard
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
14VT6K315
6W 15° 3000K
923lm
Ø 60mm
Standard
14VT6K320
6W 20° 3000K
923lm
Ø 60mm
Standard
14VT6K336
6W 36° 3000K
923lm
Ø 60mm
Standard
14VT6K350
6W 50° 3000K
923lm
Ø 60mm
Standard
TERES WW MEDIUM
TERES
TECHNICAL DRAWING
Optics
Polycarbonate lens for Wall Washer emission.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
14WW13K4M
13W 4000K
1887lm
Ø 110mm
Standard
Dimmable
14WW19K4M
19W 4000K
2619lm
Ø 110mm
Standard
Dimmable
14WW26K4M
26W 4000K
3391lm
Ø 110mm
Standard
Dimmable
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
14WW13K3M
13W 3000K
1797lm
Ø 110mm
Standard
Dimmable
14WW19K3M
19W 3000K
2495lm
Ø 110mm
Standard
Dimmable
14WW26K3M
26W 3000K
3293lm
Ø 110mm
Standard
Dimmable
TERES HF FOOD
TERES
TECHNICAL DRAWING
Optics
Internal aluminum reflectors.
Beam angles: 10°-20°-40°-70°.
Datasheets
code
flux
size
wiring
datasheet
specification items
14VT38BR10HF
38W 10° BREAD
2366lm
Ø 110mm
Standard
Dimmable
14VT38BR20HF
38W 20° BREAD
2366lm
Ø 110mm
Standard
Dimmable
14VT38BR40HF
38W 40° BREAD
2366lm
Ø 110mm
Standard
Dimmable
14VT38BR70HF
38W 70° BREAD
2366lm
Ø 110mm
Standard
Dimmable
14VT54BR10HF
54W 10° BREAD
3537lm
Ø 110mm
Standard
Dimmable
14VT54BR20HF
54W 20° BREAD
3537lm
Ø 110mm
Standard
Dimmable
14VT54BR40HF
54W 40° BREAD
3537lm
Ø 110mm
Standard
Dimmable
14VT54BR70HF
54W 70° BREAD
3537lm
Ø 110mm
Standard
Dimmable
14VT38MT10HF
38W 10° MEAT
1788lm
Ø 110mm
Standard
Dimmable
14VT38MT20HF
38W 20° MEAT
1788lm
Ø 110mm
Standard
Dimmable
14VT38MT40HF
38W 40° MEAT
1788lm
Ø 110mm
Standard
Dimmable
14VT38MT70HF
38W 70° MEAT
1788lm
Ø 110mm
Standard
Dimmable
14VT54MT10HF
54W 10° MEAT
2516lm
Ø 110mm
Standard
Dimmable
14VT54MT20HF
54W 20° MEAT
2516lm
Ø 110mm
Standard
Dimmable
14VT54MT40HF
54W 40° MEAT
2516lm
Ø 110mm
Standard
Dimmable
14VT54MT70HF
54W 70° MEAT
2516lm
Ø 110mm
Standard
Dimmable
14VT38FH10HF
38W 10° FISH
2628lm
Ø 110mm
Standard
Dimmable
14VT38FH20HF
38W 20° FISH
2628lm
Ø 110mm
Standard
Dimmable
14VT38FH40HF
38W 40° FISH
2628lm
Ø 110mm
Standard
Dimmable
14VT38FH70HF
38W 70° FISH
2628lm
Ø 110mm
Standard
Dimmable
14VT54FH10HF
54W 10° FISH
3857lm
Ø 110mm
Standard
Dimmable
14VT54FH20HF
54W 20° FISH
3857lm
Ø 110mm
Standard
Dimmable
14VT54FH40HF
54W 40° FISH
3857lm
Ø 110mm
Standard
Dimmable
14VT54FH70HF
54W 70° FISH
3857lm
Ø 110mm
Standard
Dimmable
TERES SMALL
TERES
TECHNICAL DRAWING
Optics
Internal aluminum reflectors.
Beam angles: 10°-20°-40°-50°.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
14VT9K410S
9W 10° 4000K
1467lm
Ø 80mm
Standard
Dimmable
14VT9K420S
9W 20° 4000K
1467lm
Ø 80mm
Standard
Dimmable
14VT9K440S
9W 40° 4000K
1467lm
Ø 80mm
Standard
Dimmable
14VT9K450S
9W 50° 4000K
1467lm
Ø 80mm
Standard
Dimmable
14VT12K410S
12W 10° 4000K
1991lm
Ø 80mm
Standard
Dimmable
14VT12K420S
12W 20° 4000K
1991lm
Ø 80mm
Standard
Dimmable
14VT12K440S
12W 40° 4000K
1991lm
Ø 80mm
Standard
Dimmable
14VT12K450S
12W 50° 4000K
1991lm
Ø 80mm
Standard
Dimmable
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
14VT9K310S
9W 10° 3000K
1335lm
Ø 80mm
Standard
Dimmable
14VT9K320S
9W 20° 3000K
1335lm
Ø 80mm
Standard
Dimmable
14VT9K340S
9W 40° 3000K
1335lm
Ø 80mm
Standard
Dimmable
14VT9K350S
9W 50° 3000K
1335lm
Ø 80mm
Standard
Dimmable
14VT12K310S
12W 10° 3000K
1812lm
Ø 80mm
Standard
Dimmable
14VT12K320S
12W 20° 3000K
1812lm
Ø 80mm
Standard
Dimmable
14VT12K340S
12W 40° 3000K
1812lm
Ø 80mm
Standard
Dimmable
14VT12K350S
12W 50° 3000K
1812lm
Ø 80mm
Standard
Dimmable
TERES MEDIUM
TERES
TECHNICAL DRAWING
Optics
Internal aluminum reflectors.
Beam angles: 10°-20°-40°-70°.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
14VT13K410M
13W 10° 4000K
2086lm
Ø 110mm
Standard
Dimmable
14VT13K420M
13W 20° 4000K
2086lm
Ø 110mm
Standard
Dimmable
14VT13K440M
13W 40° 4000K
2086lm
Ø 110mm
Standard
Dimmable
14VT13K470M
13W 70° 4000K
2086lm
Ø 110mm
Standard
Dimmable
14VT19K410M
19W 10° 4000K
2874lm
Ø 110mm
Standard
Dimmable
14VT19K420M
19W 20° 4000K
2874lm
Ø 110mm
Standard
Dimmable
14VT19K440M
19W 40° 4000K
2874lm
Ø 110mm
Standard
Dimmable
14VT19K470M
19W 70° 4000K
2874lm
Ø 110mm
Standard
Dimmable
14VT26K410M
26W 10° 4000K
3683lm
Ø 110mm
Standard
Dimmable
14VT26K420M
26W 20° 4000K
3683lm
Ø 110mm
Standard
Dimmable
14VT26K440M
26W 40° 4000K
3683lm
Ø 110mm
Standard
Dimmable
14VT26K470M
26W 70° 4000K
3683lm
Ø 110mm
Standard
Dimmable
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
14VT13K310M
13W 10° 3000K
1898lm
Ø 110mm
Standard
Dimmable
14VT13K320M
13W 20° 3000K
1898lm
Ø 110mm
Standard
Dimmable
14VT13K340M
13W 40° 3000K
1898lm
Ø 110mm
Standard
Dimmable
14VT13K370M
13W 70° 3000K
1898lm
Ø 110mm
Standard
Dimmable
14VT19K310M
19W 10° 3000K
2615lm
Ø 110mm
Standard
Dimmable
14VT19K320M
19W 20° 3000K
2615lm
Ø 110mm
Standard
Dimmable
14VT19K340M
19W 40° 3000K
2615lm
Ø 110mm
Standard
Dimmable
14VT19K370M
19W 70° 3000K
2615lm
Ø 110mm
Standard
Dimmable
14VT26K310M
26W 10° 3000K
3566lm
Ø 110mm
Standard
Dimmable
14VT26K320M
26W 20° 3000K
3566lm
Ø 110mm
Standard
Dimmable
14VT26K340M
26W 40° 3000K
3566lm
Ø 110mm
Standard
Dimmable
14VT26K370M
26W 70° 3000K
3566lm
Ø 110mm
Standard
Dimmable
TERES HF
TERES
TECHNICAL DRAWING
Optics
Internal aluminum reflectors.
Beam angles: 10°-20°-40°-70°.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
14VT29K410HF
29W 10° 4000K
4091lm
Ø 110mm
Standard
Dimmable
14VT29K420HF
29W 20° 4000K
4091lm
Ø 110mm
Standard
Dimmable
14VT29K440HF
29W 40° 4000K
4091lm
Ø 110mm
Standard
Dimmable
14VT29K470HF
29W 70° 4000K
4091lm
Ø 110mm
Standard
Dimmable
14VT32K410HF
32W 10° 4000K
4873lm
Ø 110mm
Standard
Dimmable
14VT32K420HF
32W 20° 4000K
4873lm
Ø 110mm
Standard
Dimmable
14VT32K440HF
32W 40° 4000K
4873lm
Ø 110mm
Standard
Dimmable
14VT32K470HF
32W 70° 4000K
4873lm
Ø 110mm
Standard
Dimmable
14VT38K410HF
38W 10° 4000K
5243lm
Ø 110mm
Standard
Dimmable
14VT38K420HF
38W 20° 4000K
5243lm
Ø 110mm
Standard
Dimmable
14VT38K440HF
38W 40° 4000K
5243lm
Ø 110mm
Standard
Dimmable
14VT38K470HF
38W 70° 4000K
5243lm
Ø 110mm
Standard
Dimmable
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
14VT29K310HF
29W 10° 3000K
3719lm
Ø 110mm
Standard
Dimmable
14VT29K320HF
29W 20° 3000K
3719lm
Ø 110mm
Standard
Dimmable
14VT29K340HF
29W 40° 3000K
3719lm
Ø 110mm
Standard
Dimmable
14VT29K370HF
29W 70° 3000K
3719lm
Ø 110mm
Standard
Dimmable
14VT32K310HF
32W 10° 3000K
4440lm
Ø 110mm
Standard
Dimmable
14VT32K320HF
32W 20° 3000K
4440lm
Ø 110mm
Standard
Dimmable
14VT32K340HF
32W 40° 3000K
4440lm
Ø 110mm
Standard
Dimmable
14VT32K370HF
32W 70° 3000K
4440lm
Ø 110mm
Standard
Dimmable
14VT38K310HF
38W 10° 3000K
4774lm
Ø 110mm
Standard
Dimmable
14VT38K320HF
38W 20° 3000K
4774lm
Ø 110mm
Standard
Dimmable
14VT38K340HF
38W 40° 3000K
4774lm
Ø 110mm
Standard
Dimmable
14VT38K370HF
38W 70° 3000K
4774lm
Ø 110mm
Standard
Dimmable
TERES ZOOM SMALL
TERES
TECHNICAL DRAWING
Optics
Polycarbonate lens. Adjustable beam angles from 25° to 60°.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
14ZM9K4S
9W 4000K
1634lm
Ø 80mm
Standard
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
14ZM9K3S
9W 3000K
1485lm
Ø 80mm
Standard
TERES ZOOM MEDIUM
TERES
TECHNICAL DRAWING
Optics
Polycarbonate lens. Adjustable beam angles from 25° to 60°.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
14ZM13K4M
13W 4000K
2182lm
Ø 110mm
Standard
Dimmable
14ZM19K4M
19W 4000K
3031lm
Ø 110mm
Standard
Dimmable
14ZM26K4M
26W 4000K
3380lm
Ø 110mm
Standard
Dimmable
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
14ZM13K3M
13W 3000K
2040lm
Ø 110mm
Standard
Dimmable
14ZM19K3M
19W 3000K
2833lm
Ø 110mm
Standard
Dimmable
14ZM26K3M
26W 3000K
3130lm
Ø 110mm
Standard
Dimmable
TERES WW SMALL
TERES
TECHNICAL DRAWING
Optics
Polycarbonate lens for Wall Washer emission.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
14WW9K4S
9W 4000K
1339lm
Ø 80mm
Standard
Dimmable
14WW12K4S
12W 4000K
1871lm
Ø 80mm
Standard
Dimmable
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
14WW9K3S
9W 3000K
1289lm
Ø 80mm
Standard
Dimmable
14WW12K3S
12W 3000K
1782lm
Ø 80mm
Standard
Dimmable
