TERES PRO
With a distinctly architectural vocation, TERES PRO represents the latest and most sophisticated inspiration for spotlight with a compact and slim body equipped with a driver completely hidden into the track. The TERES PRO ZOOM version thanks to the adjustable light beam is the best solution when flexibility is required to enlighten spaces and objects modifying the accent light to wide beam by a simple touch. The PRO ART version responds to the demanding lighting requirements of museum and exhibition spaces: the gobos allow you to design clearly and precisely geometrical rays lights, perfect to enhance sculptures and paintings.
Technical features
Optics
Body
Legal references
Certifications
On request
- In track driver
- CoB LED technology
- 3000K/4000K
- >113 lm/W
- CRI>90/CRI>95
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B10 >50.000h
- IP 40
- PC lens 15°-24°-36°-50°
- ZOOM: lens with adjustable emission 10°-45°
Die-cast aluminum with epoxy powder coating.
- CE Conformity
- Energy efficiency E
- 5 years warranty
- ETL Certification
- DALI – code D*
- Bluetooth – code BT*
- 2700K – code: K27*
- 5000K – code: K5*
* Where available
Technical features
- In track driver
- CoB LED technology
- 3000K/4000K
- >113 lm/W
- CRI>90/CRI>95
- Eye safety: RG0/RG1
- Mac Adams 3
- L80/B10 >50.000h
- IP 40
Optics
- PC lens 15°-24°-36°-50°
- ZOOM: lens with adjustable emission 10°-45°
Body
Die-cast aluminum with epoxy powder coating.
Legal references
Certifications
- CE Conformity
- Energy efficiency E
- 5 years warranty
- ETL Certification
On request
- DALI – code D*
- Bluetooth – code BT*
- 2700K – code: K27*
- 5000K – code: K5*
* Where available
TERES PRO
versions
teres pro
TERES PRO ZOOM
TERES PRO
TERES PRO Download
TECHNICAL DRAWING

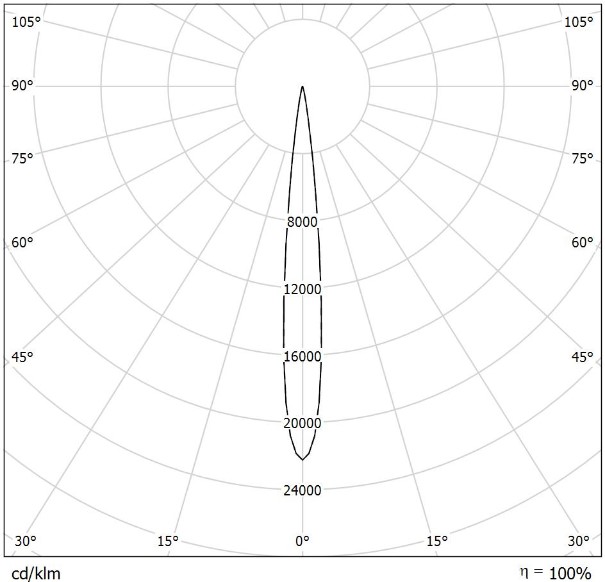

Optics
PC adjustable lens 10°-45°.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
14ZM15K4
15W 10° - 45° 4000K
1635lm
Ø 50mm
Standard
Dimmable
Bluetooth
14ZM21K4
21W 10° - 45° 4000K
2295lm
Ø 50mm
Standard
Dimmable
Bluetooth
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
14ZM15K3
15W 10° - 45° 3000K
1487lm
Ø 50mm
Standard
Dimmable
Bluetooth
14ZM21K3
21W 10°-45° 3000K
2065lm
Ø 50mm
Standard
Dimmable
Bluetooth
TERES PRO PC
TERES PRO
TERES PRO Download
TECHNICAL DRAWING
Optics
PC lens 15°-24°-36°-50°.
Datasheets
4000K
code
flux
size
wiring
datasheet
specification items
14PC15K415
15W 15° 4000K
1695lm
50mm
Standard
Dimmable
Bluetooth
14PC15K424
15W 24° 4000K
1695lm
50mm
Standard
Dimmable
Bluetooth
14PC15K436
15W 36° 4000K
1695lm
50mm
Standard
Dimmable
Bluetooth
14PC15K450
15W 50° 4000K
1695lm
50mm
Standard
Dimmable
Bluetooth
14PC21K415
21W 15° 4000K
2373lm
50mm
Standard
Dimmable
Bluetooth
14PC21K424
21W 24° 4000K
2373lm
50mm
Standard
Dimmable
Bluetooth
14PC21K436
21W 36° 4000K
2373lm
50mm
Standard
Dimmable
Bluetooth
14PC21K450
21W 50° 4000K
2373lm
50mm
Standard
Dimmable
Bluetooth
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
14PC15K315
15W 15° 3000K
1530lm
50mm
Standard
Dimmable
Bluetooth
14PC15K324
15W 24° 3000K
1530lm
50mm
Standard
Dimmable
Bluetooth
14PC15K336
15W 36° 3000K
1530lm
50mm
Standard
Dimmable
Bluetooth
14PC15K350
15W 50° 3000K
1530lm
50mm
Standard
Dimmable
Bluetooth
14PC21K315
21W 15° 3000K
2135lm
50mm
Standard
Dimmable
Bluetooth
14PC21K324
21W 24° 3000K
2135
50mm
Standard
Dimmable
Bluetooth
14PC21K336
21W 36° 3000K
2135
50mm
Standard
Dimmable
Bluetooth
14PC21K350
21W 50° 3000K
2135lm
50mm
Standard
Dimmable
Bluetooth
