WALKABOUT
WALKABOUT is the linear solution capable of highlighting architectural shapes and textures. Both in the walk-over version, recessed into the ground, and in the wall or ceiling version, it has the highest degree of protection (IP 67) while the special optics concentrate the luminous flux in a narrow beam, even in the asymmetric version. The possibility of connecting different length modules of WALKABOUT allows to create continuous light lines, both on the ground and on the façade, adapting to different architectural solutions in the outdoor environment.
Technical features
Optics
Body
Legal references
Certifications
On request
- Remote driver
- 3000K
- >100lm/W
- CRI >80
- Eye safety: RG0
- Mac Adams 3
- L80/B10 >50.000h
- IP 67
- IK 07/IK 09
- 10 kN
- Direct emission
- Back-screenprinted transparent cover glass
- PMMA optics: Narrow Beam – code NB, Wide Beam – code WB, Asymmetrical – code AS, Double asymmetric – code DAS
Anodized aluminium.
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
- CE Conformity
- Energy efficiency F
- 5 years warranty
- DALI – code D*
- 4000K – code K4*
- RGB*/RGBW*
* Where available
Technical features
- Remote driver
- 3000K
- >100lm/W
- CRI >80
- Eye safety: RG0
- Mac Adams 3
- L80/B10 >50.000h
- IP 67
- IK 07/IK 09
- 10 kN
Optics
- Direct emission
- Back-screenprinted transparent cover glass
- PMMA optics: Narrow Beam – code NB, Wide Beam – code WB, Asymmetrical – code AS, Double asymmetric – code DAS
Body
Anodized aluminium.
Legal references
In compliance with the safety standards EN 60 598-1 and UNI EN 12464-1 (lighting for working places).
Certifications
- CE Conformity
- Energy efficiency F
- 5 years warranty
On request
- DALI – code D*
- 4000K – code K4*
- RGB*/RGBW*
* Where available
WALKABOUT
versions
single installation
continuous row
WALKABOUT
WALKABOUT
WALKABOUT Download
TECHNICAL DRAWING

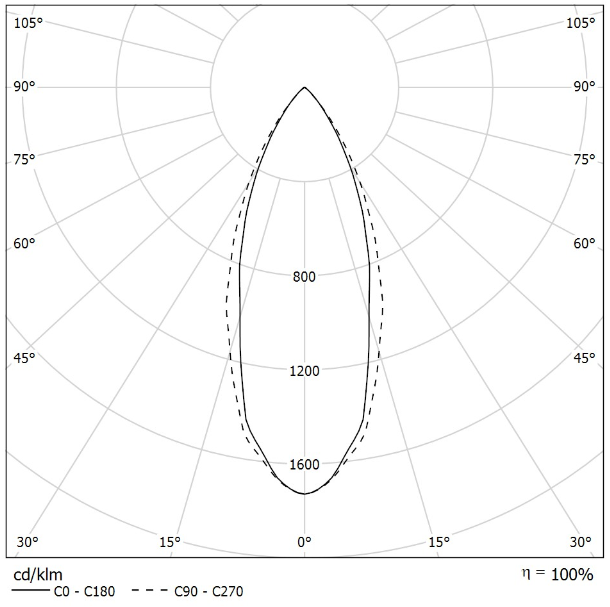

Optics

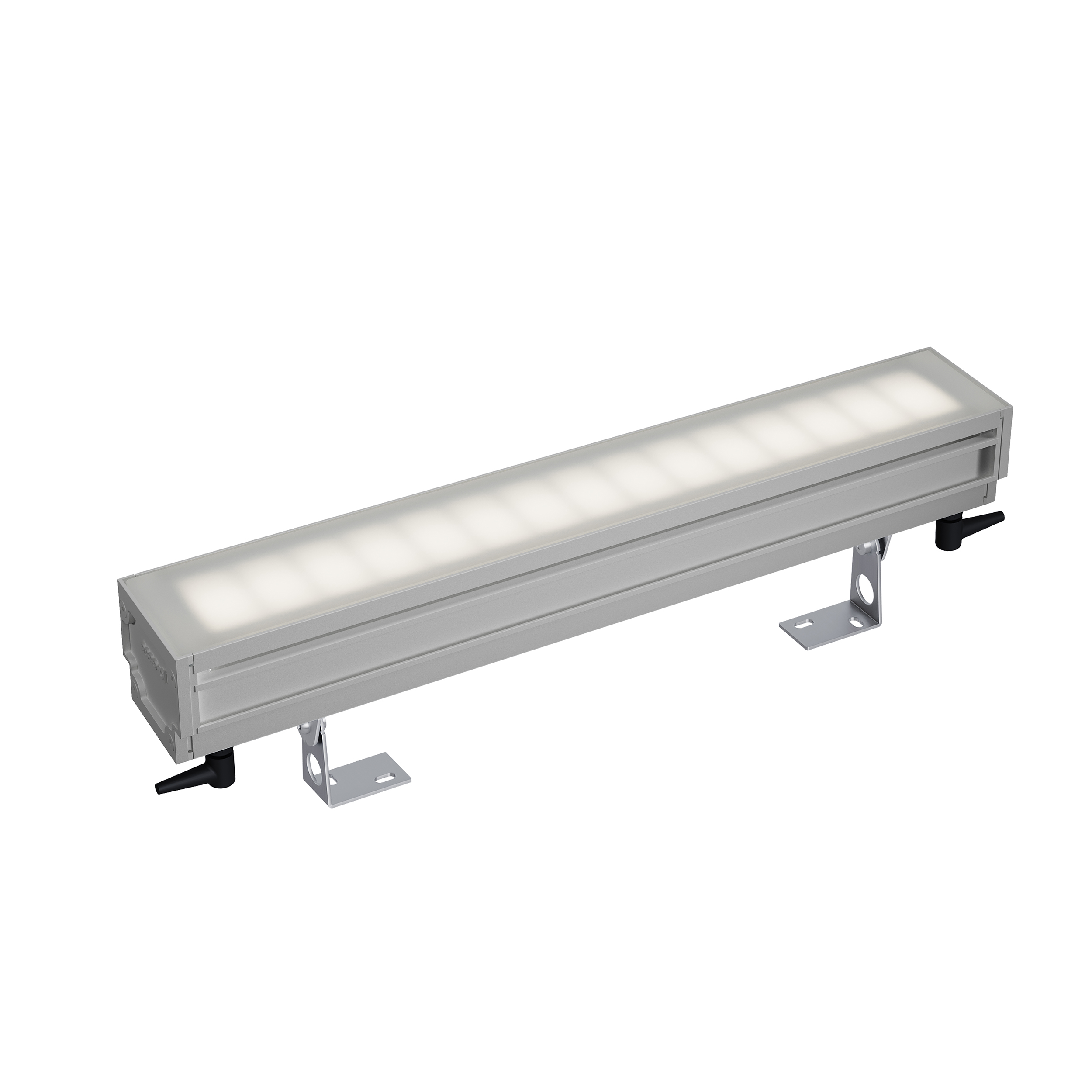

For single installation, with adjustable support.
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
93NB6K3
5.5W 3000K
681
276
Standard
Dimmable
Emergency
93NB11K3
11W 3000K
1362
526
Standard
Dimmable
Emergency
93NB22K3
22W 3000K
2724
1026
Standard
Dimmable
Emergency
93NB33K3
33W 3000K
4087
1526
Standard
Dimmable
Emergency
93AS6K3
5.5W 3000K
705
276
Standard
Dimmable
Emergency
93AS11K3
11W 3000K
1410
526
Standard
Dimmable
Emergency
93AS22K3
22W 3000K
2820
1026
Standard
Dimmable
Emergency
93AS33K3
33W 3000K
4229
1526
Standard
Dimmable
Emergency
93WB6K3
5.5W 3000K
697
276
Standard
Dimmable
Emergency
93WB11K3
11W 3000K
1394
526
Standard
Dimmable
Emergency
93WB22K3
22W 3000K
2788
1026
Standard
Dimmable
Emergency
93WB33K3
33W 3000K
4182
1526
Standard
Dimmable
Emergency
93DAS6K3
5.5W 3000K
689
276
Standard
Dimmable
Emergency
93DAS11K3
11W 3000K
1378
526
Standard
Dimmable
Emergency
93DAS22K3
22W 3000K
2756
1026
Standard
Dimmable
Emergency
93DAS33K3
33W 3000K
4134
1526
Standard
Dimmable
Emergency
WALKABOUT FC
WALKABOUT
WALKABOUT Download
TECHNICAL DRAWING
Optics
For continuous row installation with adjustable support.
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
93NB6K3FC
5.5W 3000K
681
276
Standard
Dimmable
Emergency
93NB11K3FC
11W 3000K
1362
526
Standard
Dimmable
Emergency
93NB22K3FC
22W 3000K
2724
1026
Standard
Dimmable
Emergency
93NB33K3FC
33W 3000K
4087
1526
Standard
Dimmable
Emergency
93AS6K3FC
5.5W 3000K
705
276
Standard
Dimmable
Emergency
93AS11K3FC
11W 3000K
1410
526
Standard
Dimmable
Emergency
93AS22K3FC
22W 3000K
2820
1026
Standard
Dimmable
Emergency
93AS33K3FC
33W 3000K
4229
1526
Standard
Dimmable
Emergency
93WB6K3FC
5.5W 3000K
697
276
Standard
Dimmable
Emergency
93WB11K3FC
11W 3000K
1394
526
Standard
Dimmable
Emergency
93WB22K3FC
22W 3000K
2788
1026
Standard
Dimmable
Emergency
93WB33K3FC
33W 3000K
4182
1526
Standard
Dimmable
Emergency
93DAS6K3FC
5.5W 3000K
689
276
Standard
Dimmable
Emergency
93DAS11K3FC
11W 3000K
1378
526
Standard
Dimmable
Emergency
93DAS22K3FC
22W 3000K
2756
1026
Standard
Dimmable
Emergency
93DAS33K3FC
33W 3000K
4134
1526
Standard
Dimmable
Emergency

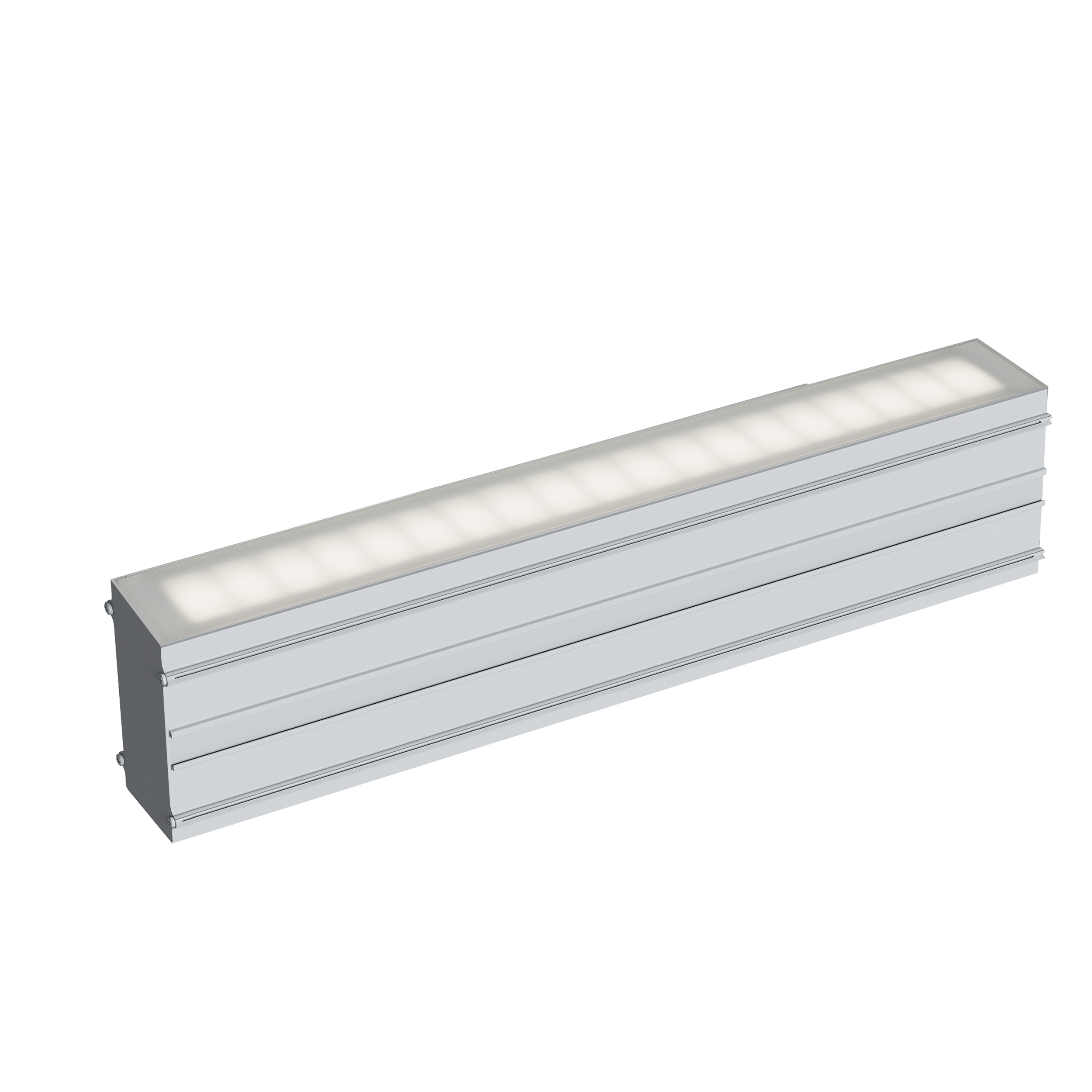

WALKABOUT GROUND
WALKABOUT
WALKABOUT Download
TECHNICAL DRAWING
Optics
For single walk-over installation. Recessed box included.
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
93NB6K3G
5.5W 3000K
681
287
Standard
Dimmable
Emergency
93NB11K3G
11W 3000K
1362
537
Standard
Dimmable
Emergency
93NB22K3G
22W 3000K
2724
1037
Standard
Dimmable
Emergency
93NB33K3G
33W 3000K
4087
1537
Standard
Dimmable
Emergency
93AS6K3G
5.5W 3000K
705
287
Standard
Dimmable
Emergency
93AS11K3G
11W 3000K
1410
537
Standard
Dimmable
Emergency
93AS22K3G
22W 3000K
2820
1037
Standard
Dimmable
Emergency
93AS33K3G
33W 3000K
4229
1537
Standard
Dimmable
Emergency
93WB6K3G
5.5W 3000K
697
287
Standard
Dimmable
Emergency
93WB11K3G
11W 3000K
1394
537
Standard
Dimmable
Emergency
93WB22K3G
22W 3000K
2788
1037
Standard
Dimmable
Emergency
93WB33K3G
33W 3000K
4182
1537
Standard
Dimmable
Emergency
93DAS6K3G
5.5W 3000K
689
287
Standard
Dimmable
Emergency
93DAS11K3G
11W 3000K
1378
537
Standard
Dimmable
Emergency
93DAS22K3G
22W 3000K
2756
1037
Standard
Dimmable
Emergency
93DAS33K3G
33W 3000K
4134
1537
Standard
Dimmable
Emergency
WALKABOUT GROUND FC
WALKABOUT
WALKABOUT Download
TECHNICAL DRAWING
Optics
For continuous row walk-over installation. Recessed box included.
Datasheets
3000K
code
flux
size
wiring
datasheet
specification items
93NB6K3GFC
5.5W 3000K
681
278
Standard
Dimmable
Emergency
93NB11K3GFC
11W 3000K
1362
528
Standard
Dimmable
Emergency
93NB22K3GFC
22W 3000K
2724
1028
Standard
Dimmable
Emergency
93NB33K3GFC
33W 3000K
4087
1528
Standard
Dimmable
Emergency
93AS6K3GFC
5.5W 3000K
705
278
Standard
Dimmable
Emergency
93AS11K3GFC
11W 3000K
1410
528
Standard
Dimmable
Emergency
93AS22K3GFC
22W 3000K
2820
1028
Standard
Dimmable
Emergency
93AS33K3GFC
33W 3000K
4229
1528
Standard
Dimmable
Emergency
93WB6K3GFC
5.5W 3000K
697
278
Standard
Dimmable
Emergency
93WB11K3GFC
11W 3000K
1394
528
Standard
Dimmable
Emergency
93WB22K3GFC
22W 3000K
2788
1028
Standard
Dimmable
Emergency
93WB33K3GFC
33W 3000K
4182
1528
Standard
Dimmable
Emergency
93DAS6K3GFC
5.5W 3000K
689
278
Standard
Dimmable
Emergency
93DAS11K3GFC
11W 3000K
1378
528
Standard
Dimmable
Emergency
93DAS22K3GFC
22W 3000K
2756
1028
Standard
Dimmable
Emergency
93DAS33K3GFC
33W 3000K
4134
1528
Standard
Dimmable
Emergency
